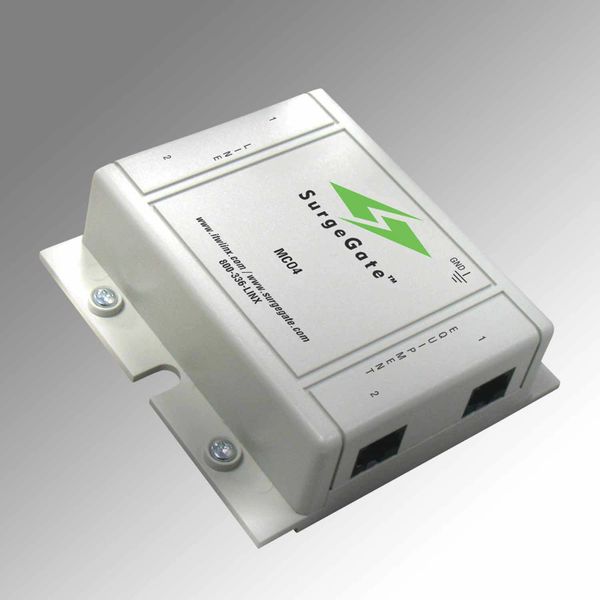

Analog Station Set and Central Office Line Protector

Protects up to 4-wires (2-pairs) per jack. Using RJ11/45 connectors (2in/2out, pins 3, 6, 4, 5 protected)

Auto-Resetting Technology: PTC resistors open when a surge occurs, protecting your equipment, but unlike other fuses, the PTCs close again once the surge passes.

Expandable modular system

Applications: Analog and Central Office lines for PBX or KSU

Agency Approval: UL 497A (Secondary)

Grounding Requirements: Uses Electrical AC Ground

Recommended Grounding Impedance: <0.5Ohm

Signal Perfect Circuitry

Auto-Resetting PTCs: 160 mA (8-10 Ohms)

Clamping Level: 260V

Response Time: 1-5 Nanoseconds

Capacitance: <50pF

Suppression Modes: Metallic and Longitudinal

Wires Protected: 4-wires (2-pairs) per jack (pins 3, 6, 4, 5)

Termination Type: RJ11/45

SPECIFICATIONS

FEATURES

Surge Protection for Amphenol/Telco:  Yes

Color: White

Environmental features

Energy Star Qualified: No

Other features

Country of Origin: USA

RoHS Compliant: No

Type of Packaging: Retail Box

Warranty: Lifetime
