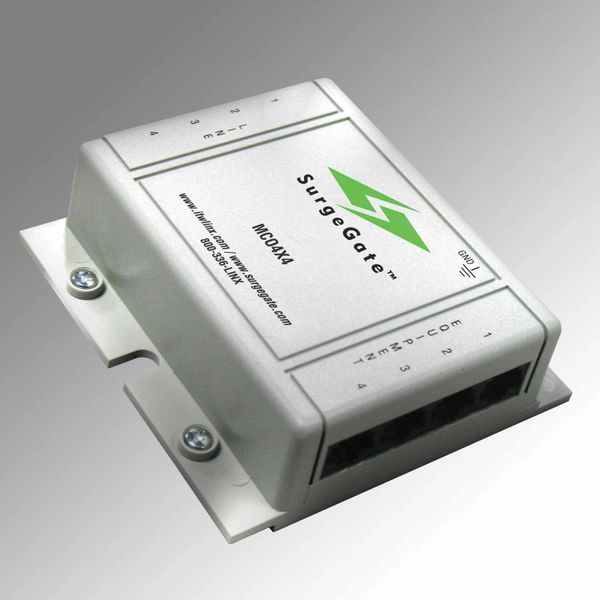

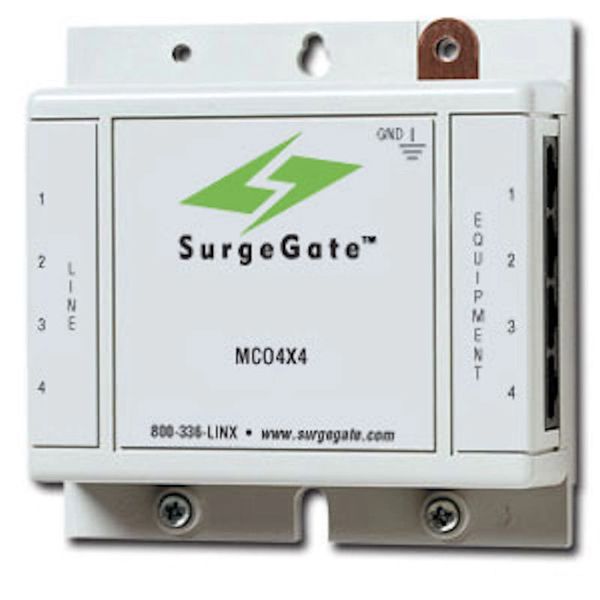

Analog Station Set and Central Office Line Protector

Protects up to 2-wires (1-pair) per jack. Using RJ11/45 connectors (pins 4, 5)

Auto-Resetting Technology: PTC resistors open when a surge occurs, protecting your equipment, but unlike other fuses, the PTCs close again once the surge passes.

Expandable modular system

Applications: Analog and Central Office lines for PBX or KSU

Agency Approval: UL 497A (Secondary)

Grounding Requirements: Uses Electrical AC Ground

Recommended Grounding Impedance: <0.5 Ohm

Signal Perfect Circuitry

Auto-Resetting PTCs: 160 mA (8-10 Ohms)

Clamping Level: 260V

Response Time: 1-5 Nanoseconds

Capacitance: <50pF

Suppression Modes: Metallic and Longitudinal

Wires Protected: 2-wires (1-pair) per jack (pins 4, 5)

Termination Type: RJ11/45

Specifications

Features

Surge Protection for Amphenol/Telco:  Yes

Color:  White

Environmental features

Energy Star Qualified:  No

Other features

Country of Origin:  USA

RoHS Compliant:  No

Type of Packaging:  Retail Box

Warranty:  "Lifetime plus $50,000 connected equipment"
