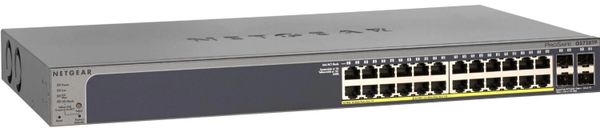

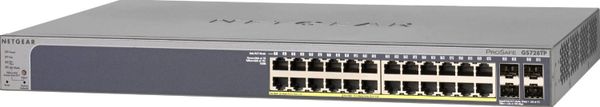

ProSafe Gigabit PoE/PoE+ 24 Port Smart Managed Switch with 4 SFP Ports

Auto Voice VLAN and Auto Video VLAN help deploy VoIP systems and IP-based surveillance systems

Static routing helps to route internal traffic for more efficient use of network resources

Energy Efficient Ethernet (802.3az) support for more energy saving

Dynamic VLAN assignment for easy user authentication and location-independent access to network

4 Dedicated SFP ports provide fiber uplinks and uplink redundancy/failover, improving reliability and

 availability for network virtualization

Total Ports: 28

Gigabit Ethernet Ports: 24 RJ45

PoE Ports: 8 PoE/PoE+ (802.3at/af) and 16 PoE only (802.3af)

SFP Ports: 4

IEEE Protocols: 802.3, 802.3i/u/ab, 802.3ad, 802.3ae, 802.3x, 802.3az, 802.3z, 802.3at/af, 802.1D, 802.1w, 802.1s, 802.1x, 802.1p, 802.1Q, 802.1ab

LEDs: Speed, Link, Activity, Power Status, Fan Status, PoE Power Status

Max PoE Consumption: 192W

Bandwidth: 56 Gbps

Forwarding Modes: Store and forward

Buffer Packet Memory: 8 MB

Address Database Size: 8,000

Mean time between failures (MTBF): 345,901 hours

Jumbo frame support up to 9k packet size

Number VLANs Supported: 256

Priority Queues: 4

IGMP Snooping v1/v2/v3

MLD Snooping v1/v2

DHCP Client

IPv4/IPv6 DSCP and TOS

L2 MAC, L3 IP, and L4 Port ACLs

SNMP v1/v2c/v3

Port Mirroring

Cable Test utility

Security: 802.1x RADIUS Authentication, Guest VLAN, Network Storm Protection, Broadcast/Unicast/Multicast Protection

Package Contents: Gigabit Switch, power cord, rack-mounting kit, resource CD

Specifications

Features

Backplane Bandwidth – Gbps                    56

IPv6 or IPv4                                                   Both

Max PoE Power Consumption – Watts     192

Number PoE Ports                                       24

Number SFP Ports                                       4

Packet Buffer Size – Kb                              8000

PoE Support Type                                       PoE and PoE+

Port Type                                                      Gigabit Ethernet

Rack Mountable                                           Yes

Total Number of Ports                                 28

Color                                                              Gray

Environmental features

Energy Star Qualified                                  No

Recycled Packaging                                   No

Other features

Country of Origin                                         China

RoHS Compliant                                          No

Type of Packaging                                       Retail Box

Warranty                                                        Lifetime
