MADE IN

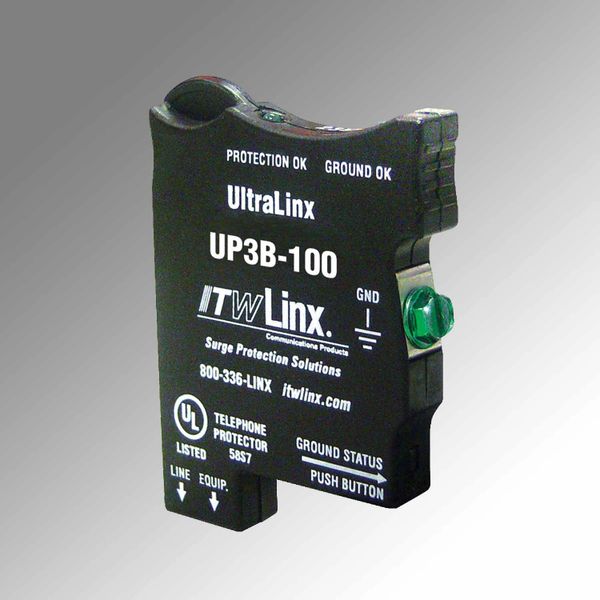

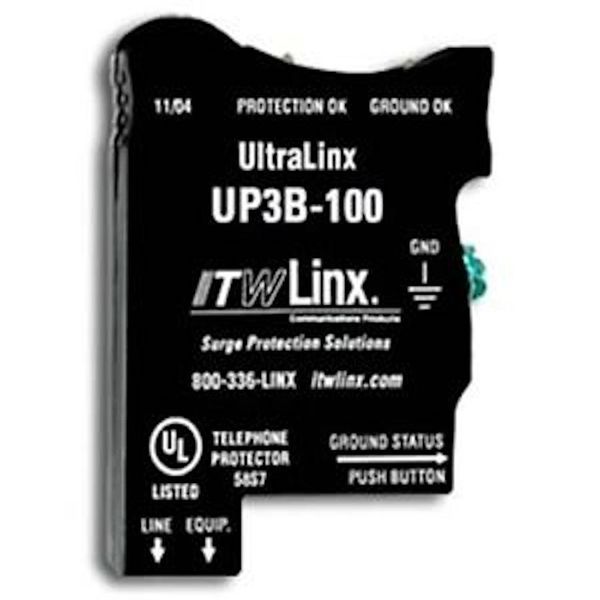

66 Block Primary or Secondary 100V Surge Protector

UL Primary and Secondary listed with 350mA fuse for voice/fax/modem line (100V)

Dual Indicator Lights: Protection OK and Ground Connection OK

Solid-State Protection

Single Pair Protection: Protect only the lines requiring protection

Ideal for Retrofit Applications: Just remove the bridging clips from the block and replace them with the Protector, add the ground connection, and the pair is connected

Grounding Requirements: Field-installed solid copper wire

Recommended Grounding Impedance: <0.5 Ohm

Fuse Rating: 350mA (1.6 Ohms)

Signal Perfect Circuitry

Clamping Level: 100V

Response Time: 1-5 Nanoseconds

Capacitance: <50pF

Suppression Modes: Metallic and Longitudinal

Wires Protected: 2-wires, 1 pair

Termination Type: 66 M Blocks

Specifications

Features

Surge Protection for Wiring Blocks              Yes

Color                                                               Black

Environmental features

Energy Star Qualified                                    No

Recycled Packaging                                      No

Other features

Country of Origin                                           USA

RoHS Compliant                                            No

Type of Packaging                                        Clamshell

Warranty                                                        Lifetime
