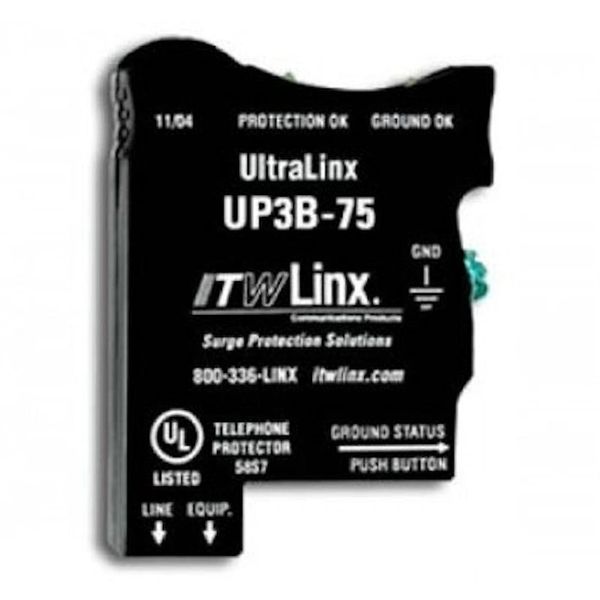

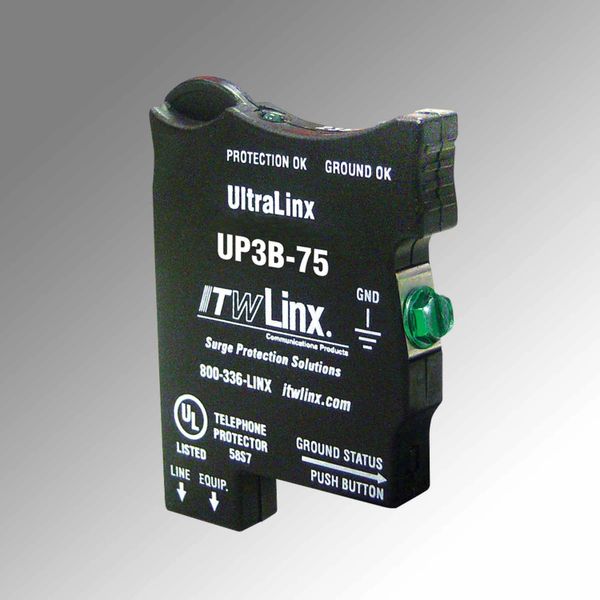

  • UltraLinx 66 Block Primary or Secondary 75V Clamp Surge Protector ITW-UP3B-75

    $15.50

    MADE IN


    66 Block Primary or Secondary 75V Surge Protector

    UL Primary and Secondary listed with 350mA fuse for voice/fax/modem line (75V)

    Dual Indicator Lights: Protection OK and Ground Connection OK

    Solid-State Protection

    Single Pair Protection: Protect only the lines requiring protection

    Ideal for Retrofit Applications: Just remove the bridging clips from the block and replace them with the Protector, add the ground connection, and the pair is connected

    Grounding Requirements: Field-installed solid copper wire

    Recommended Grounding Impedance: <0.5 Ohm

    Fuse Rating: 350mA (1.6 Ohms)

    Signal Perfect Circuitry

    Clamping Level: 75V

    Response Time: 1-5 Nanoseconds

    Capacitance: <50pF

    Suppression Modes: Metallic and Longitudinal

    Wires Protected: 2-wires, 1 pair

    Termination Type: 66 M Blocks



    Specifications

    Features

    Surge Protection for Wiring BlocksYes

    ColorBlack

    Environmental features

    Energy Star QualifiedNo

    Other features

    Country of OriginUSA

    RoHS CompliantNo

    Type of PackagingClamshell

    WarrantyLifetime
