Made in

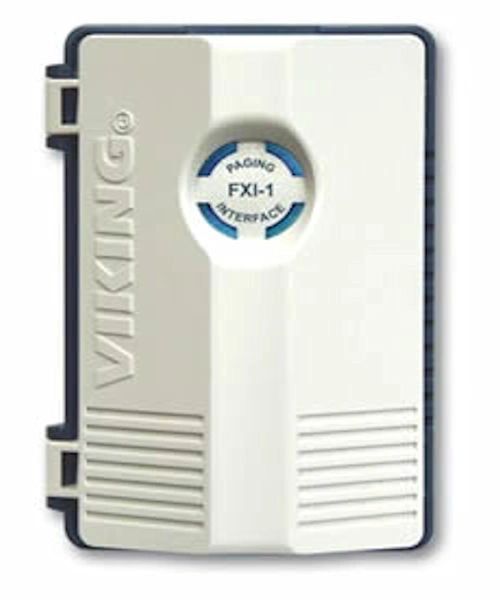

Viking universal paging interface

Select: FXO (loop start), FXS (ring trip) or paging port (VOX relay) interface mode

No power supply required in FXS interface mode

Up to 6 units can be powered from one adapter in the FXO or VOX mode

30V DC talk battery for interfacing with FXO or unused phone system line input/trunk port

Floating 600 ohm paging output with volume control

Normally open or closed relay for external paging amp activation or interfacing the paging amp with an external background music source

800 Hz pre-announce page tone (on/off)

Compatible with 24 to 48 volt FXS operation

Calling party control (CPC) detection for immediate disconnect

Busy signal detect disconnect

2.5 to 5 second VOX silence disconnect timer

Programmable VOX trigger sensitivity

16 or 36 second default disconnect timer

Screw terminal block connections

Wall mount housing: (2) #6x3/4 panhead screws included

Power: 12-24V DC @ 100mA, 120V AC/12V DC @ 500mA, UL listed adapter included (not required in FXS mode)

Dimensions: 111mm x 76mm x 36mm (4.38” x 2.97” x 1.38”)

Shipping Weight: .48 kg (1.06 lbs)

Environmental: 0°C to 32°C (32°F to 90°F) with 5% to 95% non-condensing humidity

Relay Contacts: 30V DC@1A, 110V DC@0.3A, 125V AC@0.5A

VOX Minimum Audio Signal to Activate Relay: -30dbm minimum / -26dbm minimum @ 1KHz with VOX sensitivity switch at normal / lower positions

VOX Time Out Disconnect: 2.5 or 5 second

Default Time Out Disconnect: 16 or 36 seconds

Talk Battery: 30V DC

VKFXI1

Specifications

Features

Paging Adapters and Zone Controllers   Yes

Color                                                              White

Environmental features

Energy Star Qualified                                  No

Other features

Country of Origin                                         USA

RoHS Compliant                                          Yes

Type of Packaging                                      White Box

Warranty                                                        2 Year
