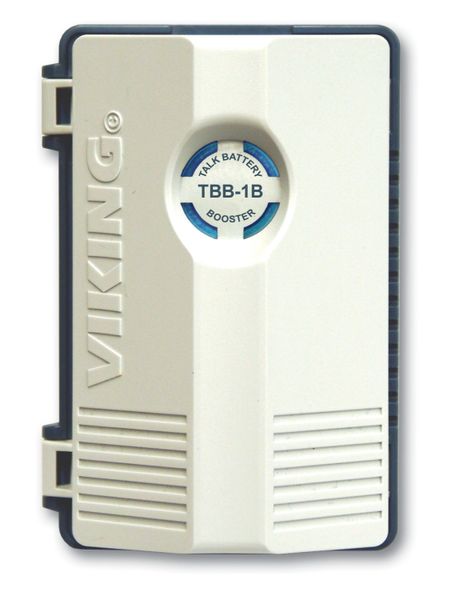

Viking Electronics battery booster and current looper to line powered devices

Run line powered devices such as handsfree phones, touch tone hot-line dialers, digital announcers, etc.

Increase maximum loop length on analog PABX/KSU stations

Use with wireless doorbox devices

Boost talk battery voltage up to 40VDC

Boost talk battery loop current up to 26mA

Power LED also displays activity

Passes original ringing through to the device

Passes caller ID data

Passes hook switch flash

Passes CPC signals

Power adapter included

Compatible with touch tone dialing

Note: Not compatible with pulse/rotary dialing

Power: 120VAC/12V DC 500mA, UL listed adapter provided

Dimensions: 76mm x 112mm x 36mm (3.0” x 4.4” x 1.4”)

Shipping Weight: 0.68 kg (1.5 lbs)

Environmental: 0° C to 32° C (32° F to 90° F) with 5% to 95% non-condensing humidity

Loop Current to Device: 26mA (nominal)

Talk Battery Output: 40V DC (nominal)

Connections: (4) screw terminals

Features

Adapters and Connectors          Yes

Color                                            Beige

Other features

Country of Origin                        USA

Type of Packaging                     White Box

Warranty                                     2 year
