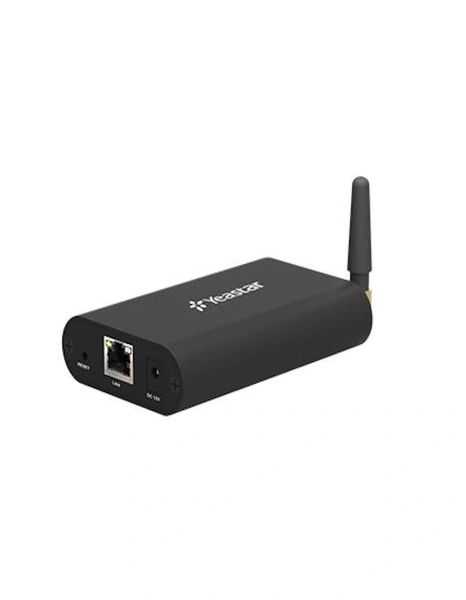

Yeastar YST-TG100 NeoGate TG100

2G GSM Gateway 850/900/1800/1900MHZ

Number of GSM channels (Max): 1

Network type: 850/900/1800/1900MHz

Protocol: SIP (RFC3261),IAX2

Transport Protocol: UDP,TCP,TLS,SRTP

DTMF: RFC2833, SIP INFO, In-band

Codec: G.711A/U law, G.722, G.723.1, G.726, G.729a.

Echo Cancellation: ITU-T G.168 LEC

LAN: 1 (10/100Mbps)

Network: Static IP, DHCP Client, Firewall, VLAN, DDNS, QoS, OpenVPN

NAT Traversal: Static NAT, STUN

Size: 110x70x24mm

Power Supply: AC 100~240V/50~60Hz (DC 12V, 1A)

Operation Range: 0° to 40°C, 32° to 104° F

Storage Range: -20° to 65°C, 4° to 149° F

Humidity: 10-90% non-condensing

SIP Server and SIP Trunk supported

SIP Peer Mode supported

Calling Type: VoIP to GSM, GSM to VoIP

GSM Ports Group Manage, VoIP Trunk Group

Incoming /Outgoing Routing rules

SMS Sending and Receiving

Send Bulk SMS

Gain Adjustment

USSD

PIN Modify

Carrier Selection: Auto/Manual

Balance Alarm

Caller ID/CLIR

Black List

Hotline

Call Duration Limitation

Call Transfer

Call Back

Call Status Display

Call Detail Record (CDR)

Call Progress Tone Generation

Call Duration Limitation for SIM Card/Single Call

LCR (Least Cost Routing)

Top voice quality (EFR super sound)

SIP Response Code Switch

Open API for SMS and USSD

Real Open API Protocol (Based on Asterisk)

IP Blacklist

Network Attack Alert

System Logs

Incompatible with ATT network

Specifications

Features

Number GSM Ports:  1

Color:  Black

Other features

Country of Origin:  China

Type of Packaging:  Retail Box

Warranty:  2 Year
